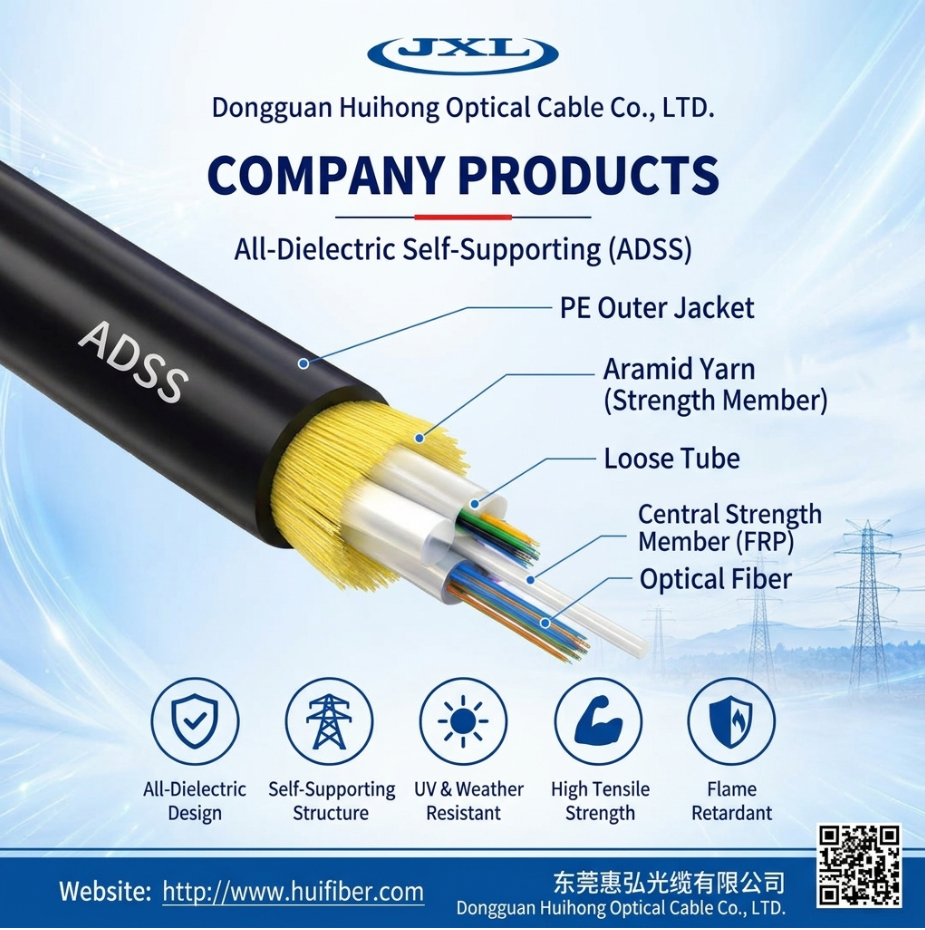

Understanding the Unique Construction of ADSS Cable

All-Dielectric Self-Supporting (ADSS) fiber optic cables are engineered specifically for aerial applications along high-voltage power transmission lines without requiring metallic support wires. Their all-dielectric nature eliminates electromagnetic interference and eliminates the risk of lightning strikes on the cable structure.

Non-Metallic Central Strength Member (FRP): Provides high tensile stability without grounding requirements or risk of electrical conduction.

Loose Tube Structure: Houses high-grade optical fibers within jelly-filled tubes, protecting against moisture ingress and lateral stress.

Customized Aramid Yarn Layer: Serves as the primary strength member, delivering exceptional tensile strength and flexibility for long spans.

Weather-Resistant Outer Jacket (PE/AT): High-density Polyethylene (PE) or Tracking-Resistant (AT) jacket options ensure UV resistance, anti-aging, and long-term durability under harsh ambient conditions.

Key Applications and Structural Advantages

ADSS cables are designed to withstand challenging external factors, including heavy ice loads, high winds, and strong ambient electrical fields:

Structural Feature	Operational Benefit
All-Dielectric Design	Completely safe for installation on live high-voltage power lines (110kV to 500kV).
Self-Supporting Structure	Eliminates the need for a separate messenger wire, reducing material and installation costs.
High Tensile Strength	Engineered using high-modulus aramid yarn to withstand extreme spans and extreme weather conditions.
Flame Retardant & UV Resistant	Extended lifespan in outdoor aerial deployments exposed to direct sunlight and temperature fluctuations.

The Huifiber Advantage: Factory-Direct Quality & Customization

As a leading manufacturer of fiber optic cables, Dongguan Hui Hong Fiber Optic Cable Co., Ltd. (Huifiber) provides tailormade ADSS solutions optimized for global telecom and utility projects.

Tailored Tensile Engineering: We adjust aramid yarn density and core counts (up to 288 cores) according to your specific span distance (Span 100m to 1000m+) and weather conditions.

Strict Quality Assurance: Every batch undergoes rigorous tensile, crushing, temperature cycling, and water-penetration tests before dispatch.

End-to-End Solutions: From cable design to matching hardware fittings (tension clamps, suspension clamps), Huifiber offers full lifecycle project support.
