01
FTTH/FTTX Networks
FTTH / FTTX network fiber optic cable from Huifiber: drop cable, distribution cable, PLC splitters and closures for campus and security surveillance networks.
02
Data Center Cabling
Data center fiber optic cabling from Huifiber: MPO/MTP trunk assemblies, high-density patch cords and OM3/OM4 multimode cable, plus 5G fronthaul solutions.
03
Telecommunication & 5G Infrastructure
It covers the entire transmission levels of 5G’s front-haul, mid-haul and back-haul.
04
Long-Distance Transmission
Long-distance and backbone fiber optic cable from Huifiber: low-loss G.652D single-mode loose tube cable for telecom backhaul and long-haul transmission routes.
Fiber Optic Cabling Solutions by Application
A cable only earns its cost when it matches the network it serves. Huifiber builds cable and cable assemblies for four main deployment environments, and each one has a different failure mode to design against – wind and ice loading on an aerial span, bend radius inside a data hall, water ingress in a buried duct, or temperature cycling in a 5G cabinet.
FTTH and FTTX Access Networks
Bow-type drop cable, figure-8 aerial drop and micro duct cable for the subscriber drop, together with closures, splitters and patch panels that keep the access network consistent from the distribution point to the ONT. Pre-terminated assemblies cut splicing time on site.

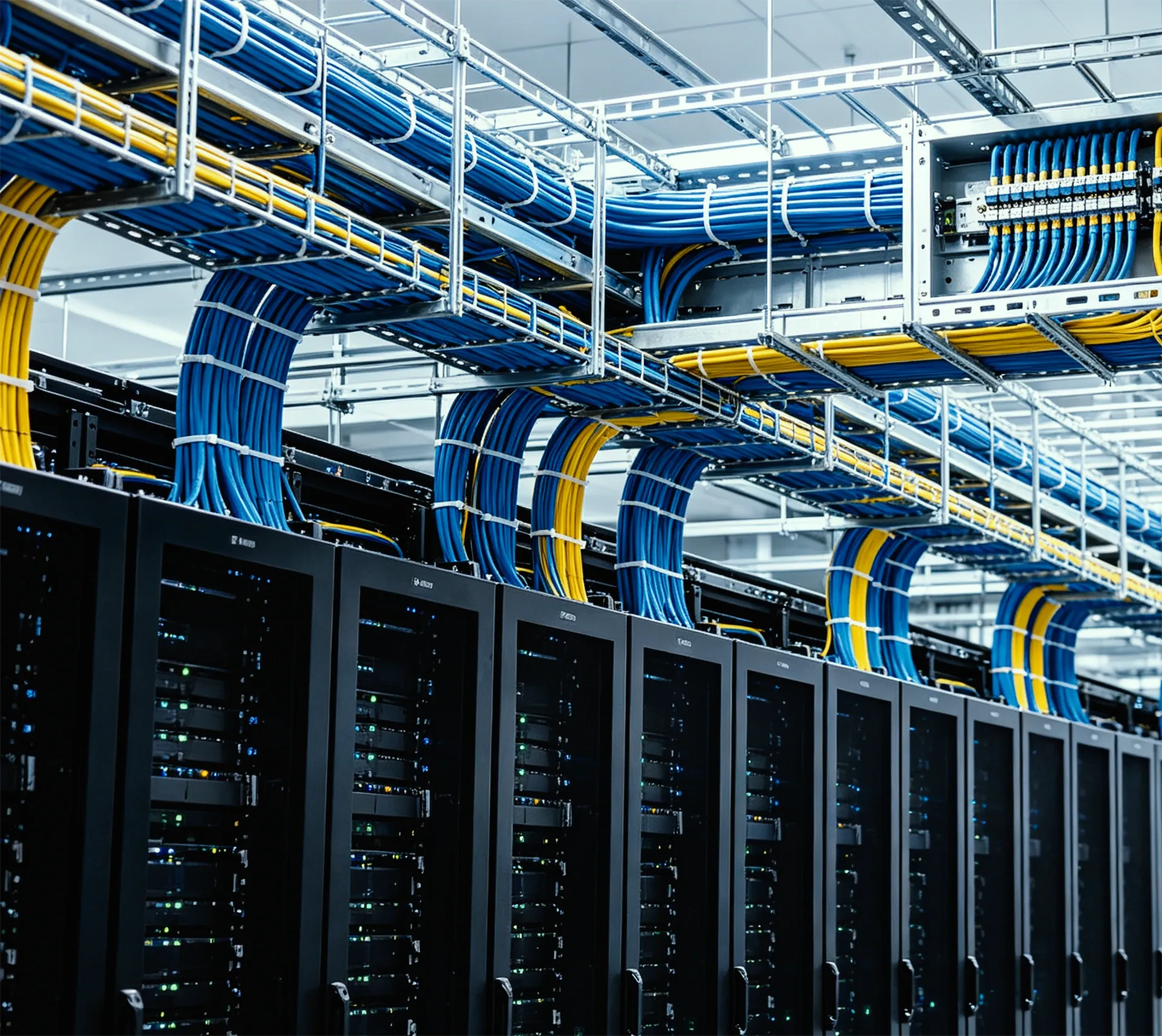

Data Centre Cabling
High-density indoor cabling for spine, leaf and cross-connect links, including bend-insensitive multimode and single-mode jumpers, MPO trunk assemblies and breakout harnesses that fit within the rack’s bend-radius budget.
Telecommunication and 5G Infrastructure
Backhaul and fronthaul cable for macro sites and small cells, with ruggedised jackets and waterproof connectorisation that survive pole-top and underground chamber conditions.
Long-Distance Transmission
High-fibre-count stranded loose tube cable and low-loss single-mode fibre for metropolitan and long-haul routes, supplied in long drum lengths to reduce the number of splices per link.
If a project crosses more than one of these environments, tell us the route and we will return a single bill of materials that covers the whole path rather than a patchwork of cable types.
Frequently Asked Questions
Which applications do Huifiber cabling solutions support?
Huifiber supplies cables for FTTH and FTTx access networks, data centre cabling, telecommunication and 5G infrastructure, and long-distance transmission, covering subscriber drop, metro, backbone and monitoring routes.
Which cable should I use for the FTTH last mile?
FTTH drop routes normally use flat or round drop cable such as GJXH, GJXCH or GJYXCH with bend-insensitive G.657.A1/A2 fibre, which tolerates tight bends at building entry and remains splice-compatible with G.652D backbone fibre.
Which cable is best for long-distance backbone links?
Long-distance routes are built on stranded loose tube cable such as GYTA or GYTS with G.652D fibre, in core counts from 12 to 288, with armoured or direct-buried variants where the route leaves duct and crosses difficult terrain.
Does Huifiber supply the accessories for these networks?
Yes. Alongside cable, Huifiber supplies patch cords, ODFs and patch panels, adapters and couplers, and PLC splitters, so a complete FTTH or data centre link can be sourced from one factory.
